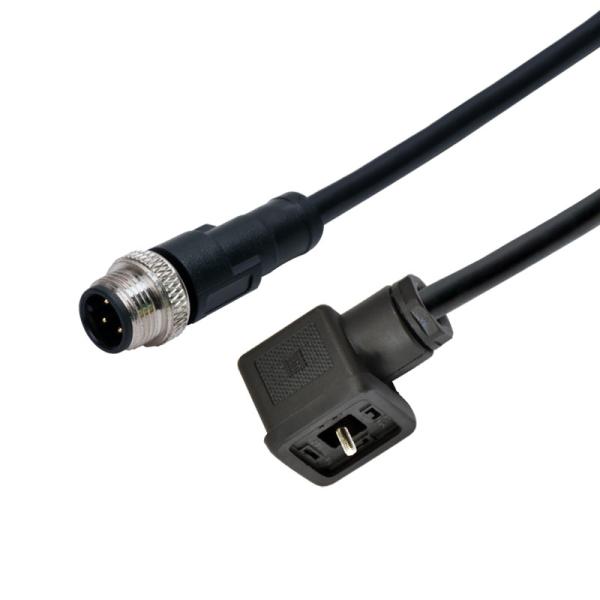

M12 Molding 5pins Male Straight Connector To Solenoid Valve A Type
3+PE Connector
Product description
Rigoal offers 1,143 m12 molding connector products.
A wide variety of m12 molding connectors options are available to
you.
The M12 connector is a circular connector with a 12-mm locking
thread that is used primarily in factory automation applications
for actuators, sensors, industrial ethernet, and Fieldbus
The M12 is a reference to the thread type used in the connection of
this product.
We provide International Protection Marking IP65, IP66, IP67, IP68
rated connectors and cable assemblies which are easy to install.
General Details
Contacts: 3+PE
Connector design: plug molding connector
Connector locking system: central bolt
Termination: screw clamp
Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²
Wire gauge (AWG): min. AWG 22, max. AWG 16
Cable outlet: 6,0 - 8,0 mm
Upper limit temperature: 120 °C
Lower limit temperature: -30 °C
Electrical values
Rated current (40 °C): 10 A
Rated voltage: 250 V
Rated impulse voltage: 4000 V
Pollution degree: 3
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 15 mΩ
Insulation resistance: ≥ 10¹⁰Ω
EMC compliance: not shielded
Degree of protection: IP65
Mechanical operation: > 50 Mating cycles
Material
Contact material: CuSn (bronze)
Contact plating: Ni (nickel)
Contact body material: PA (UL 94 HB)
Housing material: PA
| Pin No. | 3 | 4 | 5 | 8 | 12 | 17 |
| Coding: | A | A | A | A | A | A |
| Standard | IEC61076-2-101 |
| Rated current | 4A | 4A | 4A | 2A | 1.5A | 1A |
| Rated voltage+ | 250V | 250V | 60V | 30V | 30V | 30V |
| Operating Temperatur | -25℃~85 ℃ |
| Degree of protection | IP67/IP68 |
| Connector locking system | Solder |
| Mechanical operation | >500 mating cycles |
| Contact resistance | ≤10mΩ |
| Material of connector | CuZn |
| Contact plating | Au(gold plating) |
| Material of connector body | Cu,Epoxy resin |
Component part drawing
| Connector type | m12 to selnoid valve connector |
| Contacts | 2+PE 3+PE / 5PINS |
| Gender | female |
| Degree of protection | IP65 |
| Size of tail | PG7 or PG9 |
Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q4: How to contact us?
A: contact us with email/whatsapp/wechat
