M16 Circular Connector Waterproof IP67 M16 8pins Male Front Panel
Mount Connector
Product details
* M16 Series With excellent EMI shielding and an environmental
protection rating of IP67 when mated
* Excellent shielding interference effect.
* m16 series connector is used for instruments and electronic
equipment. It contacts from wires and cable to equipment. it widely
used in aviation,navigation,computer,communication,mechanical
* More than 7 years experiences cooperated with worldwide
manufacturers and wholesalers,
* Professional sales team with profession to provide the best
service for you.
Material details
Contacts: 2 3 4 5 6 7 8 12 14 19 24pins
Material ot contact: CuZn
Contact plating: Au (Gold/gold)
Material of contact body: PBT (UL 94 V-0)
Material of housing: CuZn (brass, nickel plated)
Pollution degree: 1(2)²
Overvoltage categorie: l(II)²
Material group: lll
Upper temperature: + 85 °C
Lower temperature: – 40 °C
| Gender | Male |
| Cable outlet | 4–6 mm (PG 7)/6–8 mm (PG 9) |
| Wire gauge | max. 0,75 mm2 (max. AWG 20) |
| Rated voltage | 60 V (32 V) |
| Rated impulse voltage | 500 V |
| Rated current (40 °C) | 5 A |
| Contact resistance | ≤ 5 ohm/≤ 3 ohm |
| Contact plating | Ag Au (Gold/gold) |

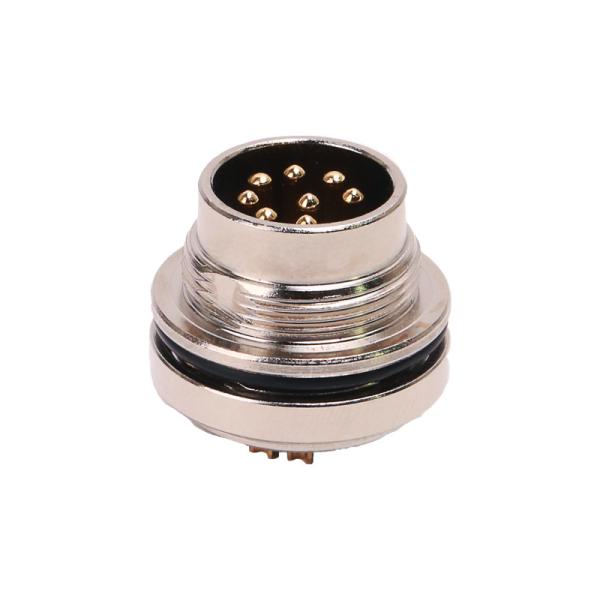

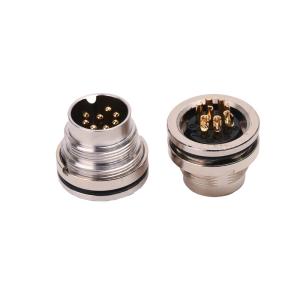

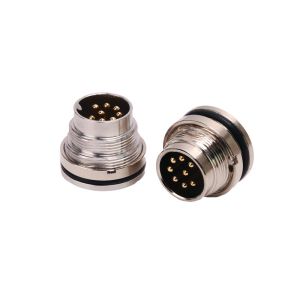

Product Photos
FAQ
Q1: Why choose us?
A: 100% homemade, competitive price and fast delivery
Strictly quality control, connectors certified by TUV/CE/ROHS.
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is 1-3 work days; Mass is 5-15 work days.
Q4. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on customer's requirements as long as tell us your demand
Q5: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
