IP67 IP68 Waterproof Connector Female Male M12 A Code Straight and
90 bend Molding Cable
M12 12PIN A 90 bend Male to 90 Bend Male Mold Cable

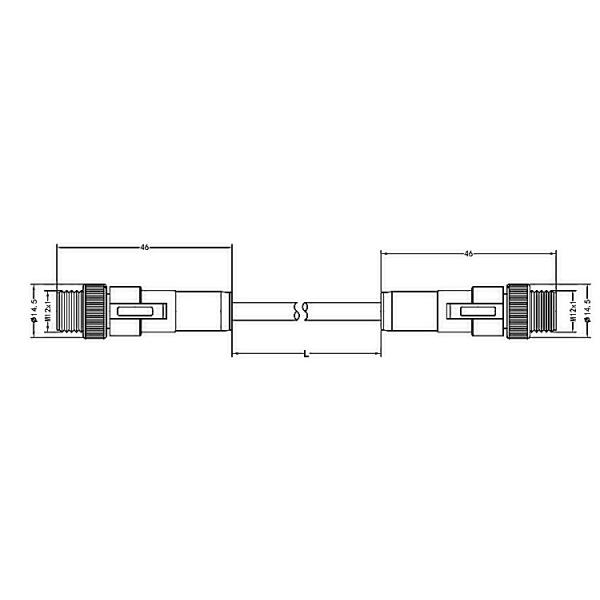

M12 12PIN A Straight Male to Male Mold Cable

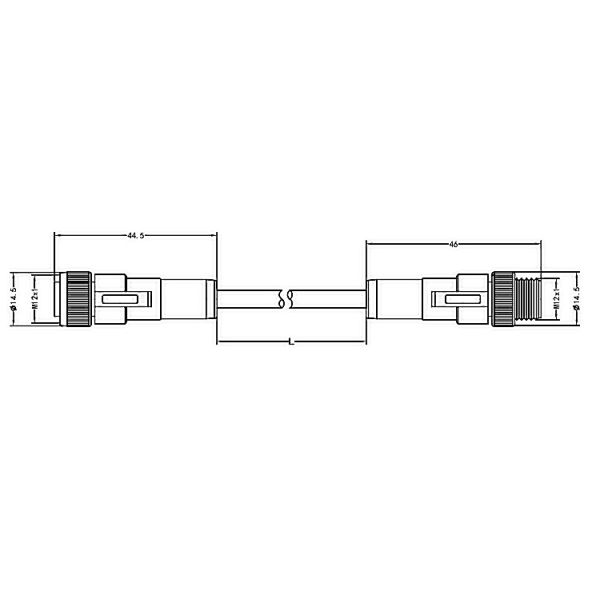

M12 12PIN A Straight Male to Female Mold Cable
M12 12PIN A Straight Male to 90 Bend Female Mold Cable
Connector coded:A,B,C,D,S,T,X
Number of positions:3~17PIN
Rated voltage:30V-250V
Rated current:1.5A~4A
Insulation resistance: ≥ 100 MΩ
Connection method: Solder pins
Insertion/withdrawal cycles: > 100
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 66
Material: nickel-plated
Mounting type:PG9/M16
Ambient temperature: -40 °C ~+80°C
Degree of protection:IP67/IP68
| Product Name | IP67 waterproof A,B,C,D,S,T,X code male aviation cable M12 connector 4 pin |
| Material | Brass |
| Color | Silver |
| Orientation | Straight or Right angle |
| Termination | Solder |
| Coupling | Threaded coupling |
| Category | Pin type or Hole type |
| Used | Outdoor light boxes, Construction machinery, Iron and Steel
production equipment, Power equipment, Mining machinery, Ship
machinery, Auto equipment, Automatic production equipment,
Temperature transmitter, Hydraulic machine, Sensors,
Electromagnetic valve, Instruments and meters, Pressure
transmitter, etc. |
Quality statement:
● Screws/nuts materials: brass with nickel plating, CNC parts
● Male contacts materials: brass with gold plating, machined solid
pin
● Female contacts materials: phosphor bronze with gold plating,
machined solid pin
● Protection degrees: IP67/IP68 in locked status
● RoHS Directive-compliant
