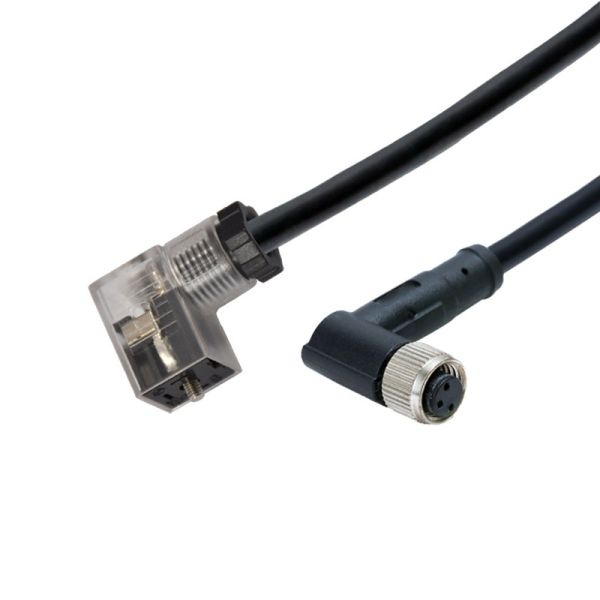

M12 Waterproof Molding 5pins Female Molding Connector To Solenoid
Valve Type C LED
Product description
* M12 Connectors Whether angled or straight, Belden's M12
Connectors for transmission of digital and analog signals enable
fully shielded connections from one device to the next in
automation technology.
* we have not only the common female version of M12 D coded
connectors with cable, but also the male version.
* The materials with UL 94V-0 flammability rating are high/low
temperature resistant and UV resistant with IP68/IP67 rating
* PVC and PUR cables are available to meet different customers’
needs.
* A PVC cable with IP68 rating can be sealed against the ingress of
water even during a washdown.
* PUR cable is resistant to flames, oil, and other harsh chemicals.
It has high tensile strength and abrasion resistance.
Quick details
1. M12 molding connector 5pins female gender
2. 2, 3, 4, 5, 8 poles per connector are available
3. PUR/PVC cable accessories available upon customer requesting
4. Operating voltage 30V, Rated current 4A
5. UL94 V-0 PA66+GF plastic Housing / Metal shell
6. Degree of protection IP67
7. Temperature will from -40° to +80°
8. Connector locking system is bolted
9. Wire gauge(mm) is 0.34mm²
10. Wire gage(AWG) 22
| Material Data |
| Shell material | copper/Zinc |
| Core material | PA |
| Overmold material | PVC/TPU |
| Terminal material | Phosphor copper |
Electrical values
Rated current : 4 A
Rated voltage :250 V
Rated impulse voltage :1500 V
Pollution degree :3
Contact resistance:≤10mΩ
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
Insolution resistance:≧100mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu
connector, solenoid valve connector etc, also can customized based
on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q4: How to contact us?
A: contact us with email/whatsapp/wechat
